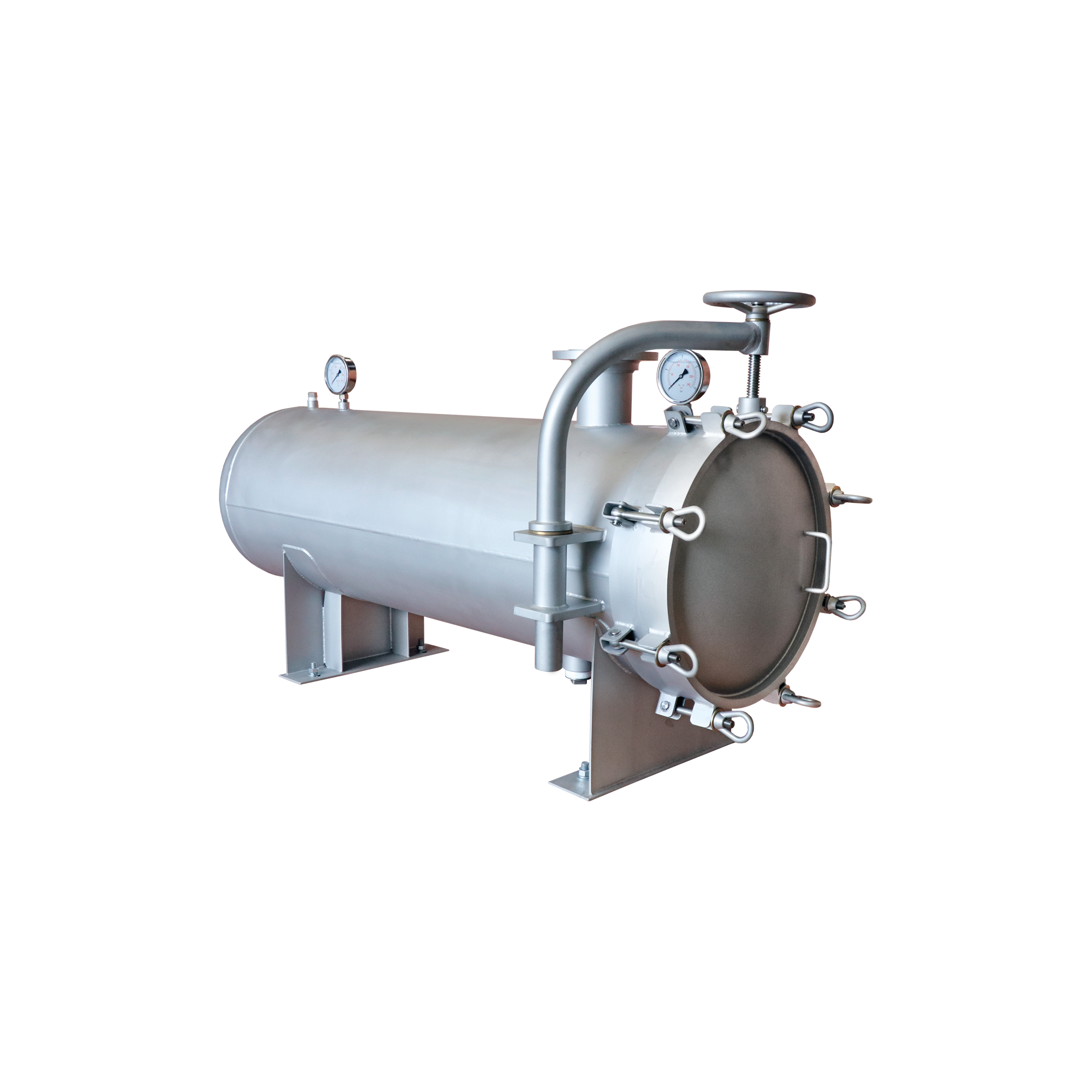

Inox High Flow Filter Housings (PFH-SGB)

Features & Information
  • Glass Bead Finished 316L Stainless Steel provides enhanced corrosion resistance
  • Pressure gauges (x2) included
  • Vent gauge and drain ports come fitted with PTFE wrapped plugs
Applications & Industries
  • High flow applications
  • Local water authorities
  • Food and beverage
  • Inside to out fluid applications

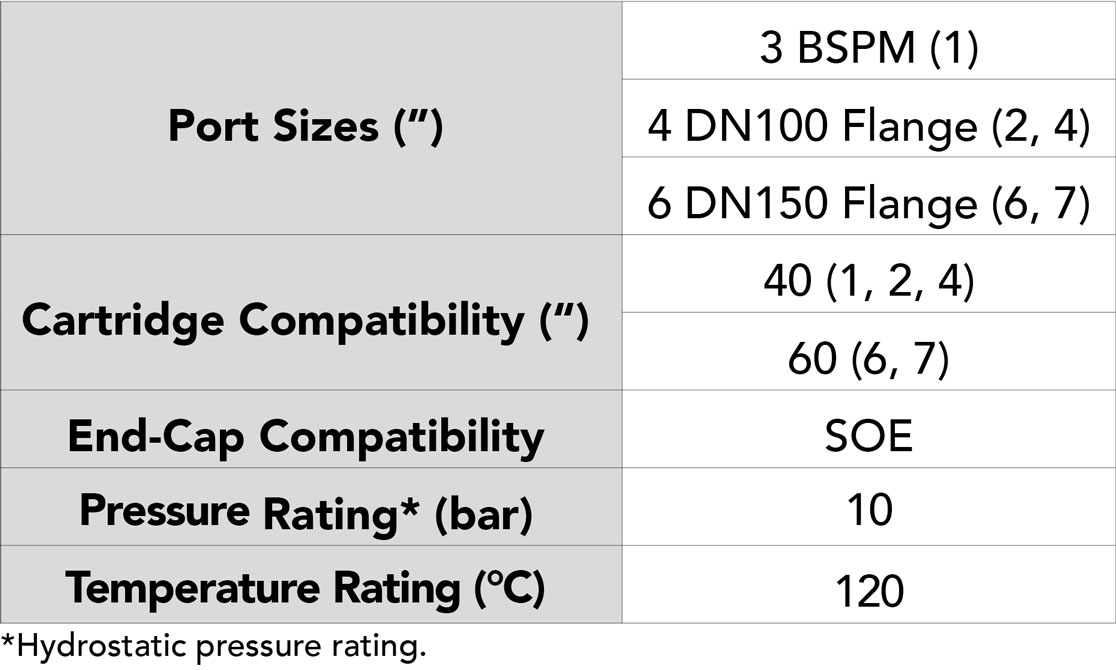

Technical Data

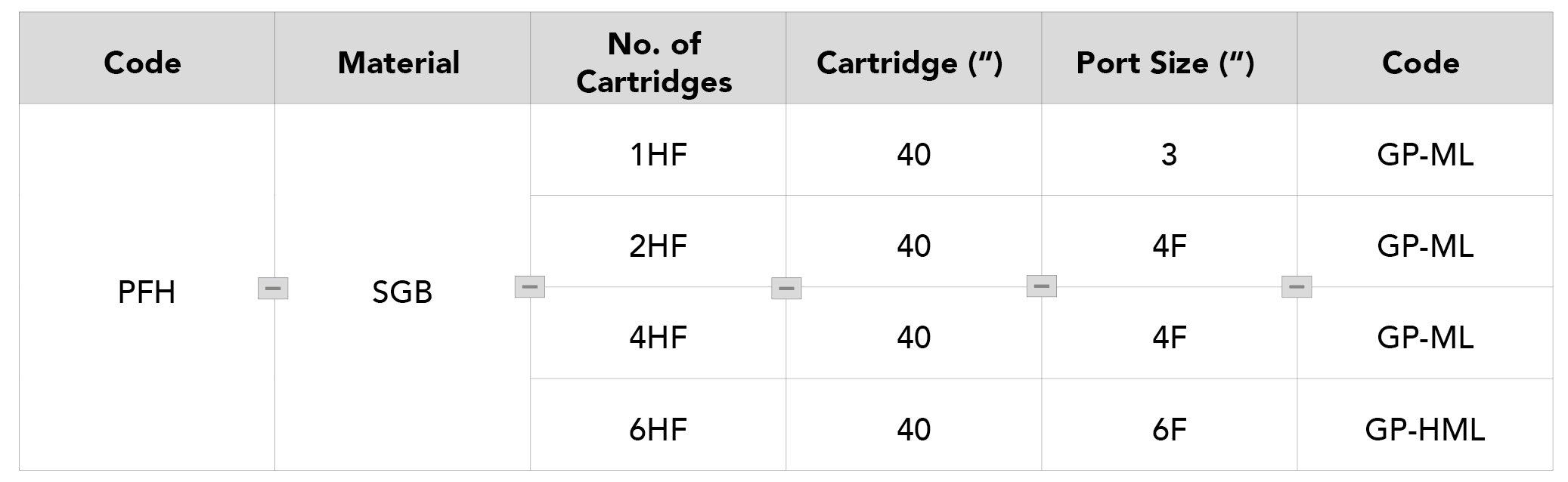

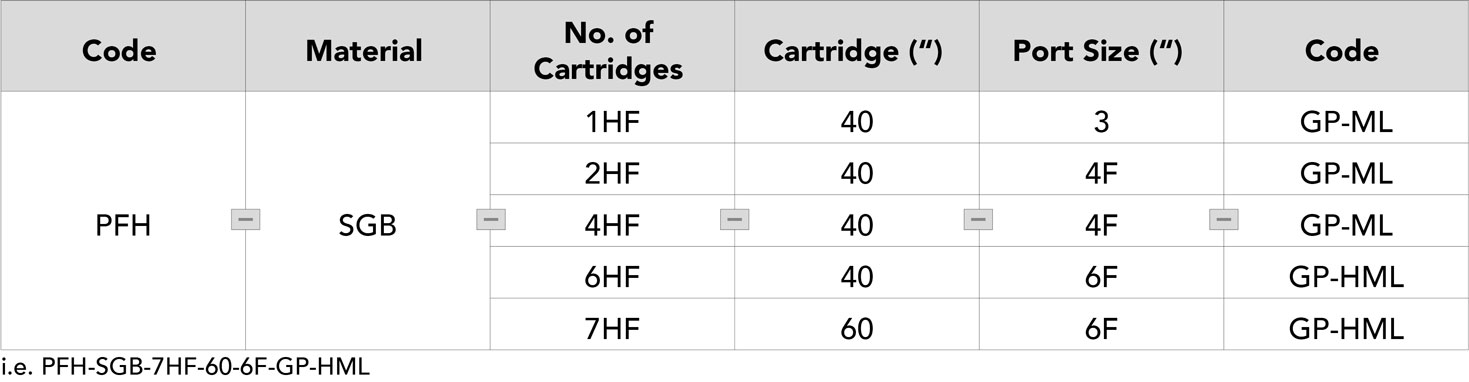

Ordering Details

Features & Information

SPECTRUM Inox High Flow housings are specifically designed to suit the SPECTRUM range of high flow filter cartridges. Available in single or multi round – SPECTRUM high flow housings achieve impressively high flow rates; with a convenient Davit arm assembly for ease of speedy cartridge change-out, keeping large, fast-paced industrial applications flowing.


What are the advantages of using Inox High Flow housings?

Aside from the obvious benefit of being able to accommodate impressive flow rates equivalent to that of numerous multi-round standard housings, Inox High Flow housings offer a number of easy-to-use features such as swing bolt and Davit arm closure mechanisms, included pressure gauges for pressure drop monitoring, top plate to reduce bypass and flanged inlet/outlet ports to facilitate ease of operation and reduce down time and required manpower.

What cartridges should be used with Inox High Flow housings?

This Inox housing range accepts most industry standard high flow cartridges but is engineered to produce optimum results when used with the SPECTRUM Premier Pleat High Flow cartridge (PPP-HF and PPG-HF).

What are the advantages of using metal filter housings over plastic ones?

Metal filter housings offer advantages such as high-temperature and high-pressure tolerance, while plastic housings are chosen for their corrosion resistance and cost-effectiveness, depending on specific application requirements.

How do I choose the right filter housing for my application?

Consider the below factors when selecting a plastic filter housing. Consulting with a filtration expert or supplier for guidance is also advised.


  • Type of fluid
  • Flow rate
  • Temperature
  • Pressure
  • Chemical compatibility
  • Filter element requirements
